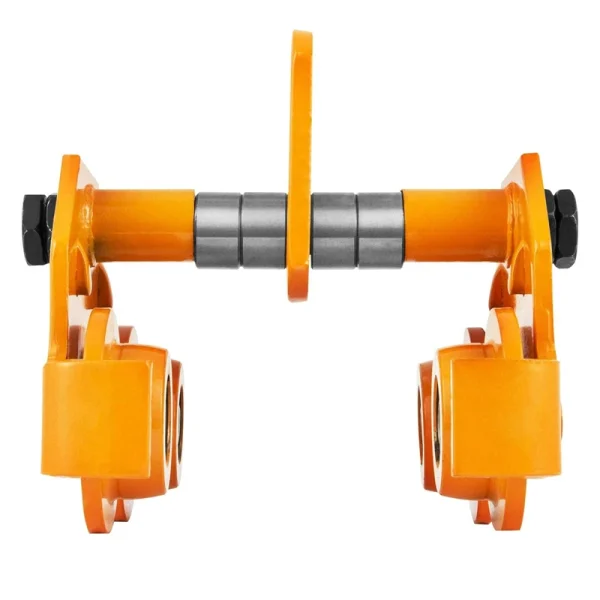

Heavy Duty Manual Trolley Beam for Sale with Push Beam Trolley
This manual trolley beam and push beam trolley set handles loads from 1 to 20 tons with durability and smooth operation. Custom design and manufacturing are available to meet your specific needs. A reliable beam trolley for sale option for industrial lifting applications, ensuring safety and efficiency.
- 【LARGE LOAD CAPACITY】– Steel push beam trolley with 20 Ton weight capacity. It is designed for horizontally transporting loads by hand.
- 【UPGRADE FEATURE】– Push beam trolley feature a light weight robust construction. It has quick and effective adjustment to fit most types of beams.
- 【DURABLE DESIGN】– Our girder trolleys feature rugged steel side plates and durable baked enamel paint protection, with built-in bumper guards.
- 【EASY TO USE】–The package includes self-locking nut, washer and lifting ring. Just unscrew the nut, control the tightness with a washer, and the installation is complete.
- 【APPLICATIONS】– Manually trolley adjustable to fit standard or wide flange I-beam track. Adjustable width: 2.7”-4.5”, and easily installed onto various beams and girders.
Manual Trolley Beam Key Attributes
Support customization, details consulting customer service【Contact Us】
| Material | Alloy Steel, Stainless Steel | Wheel | Four-Wheel |
|---|---|---|---|
| Place of Origin | Hebei, China | Customized support | OEM, ODM, OBM |
| Brand Name | MAITOR | Structure | Enclosed |
| Usage | Industrial | Warranty | 1 year |
| Product name | push beam trolley | Load Capacity | 1-20ton |
| Type | Manual | Usage | Lifting goods |
| Application | Crane/Hoist | Color | Customers' Requirements |
| Packing | Custom Packing Acceptable |
Product Paramenters
| Capacity（ton） | I-beam width（mm） | Min. turning radius（m） | weight（kg） |
|---|---|---|---|
| 0.5 | 68-94 | 0.9 | 4.3 |
| 1.0 | 68-100 | 1.0 | 7.5 |
| 2.0 | 94-124 | 1.1 | 11.5 |
| 3.0 | 116-140 | 1.3 | 18 |
| 5.0 | 140-180 | 1.4 | 30.6 |
| 10 | 125-180 | 1.7 | 43 |
| 20 | 136-203 | 5.0 | 200 |
